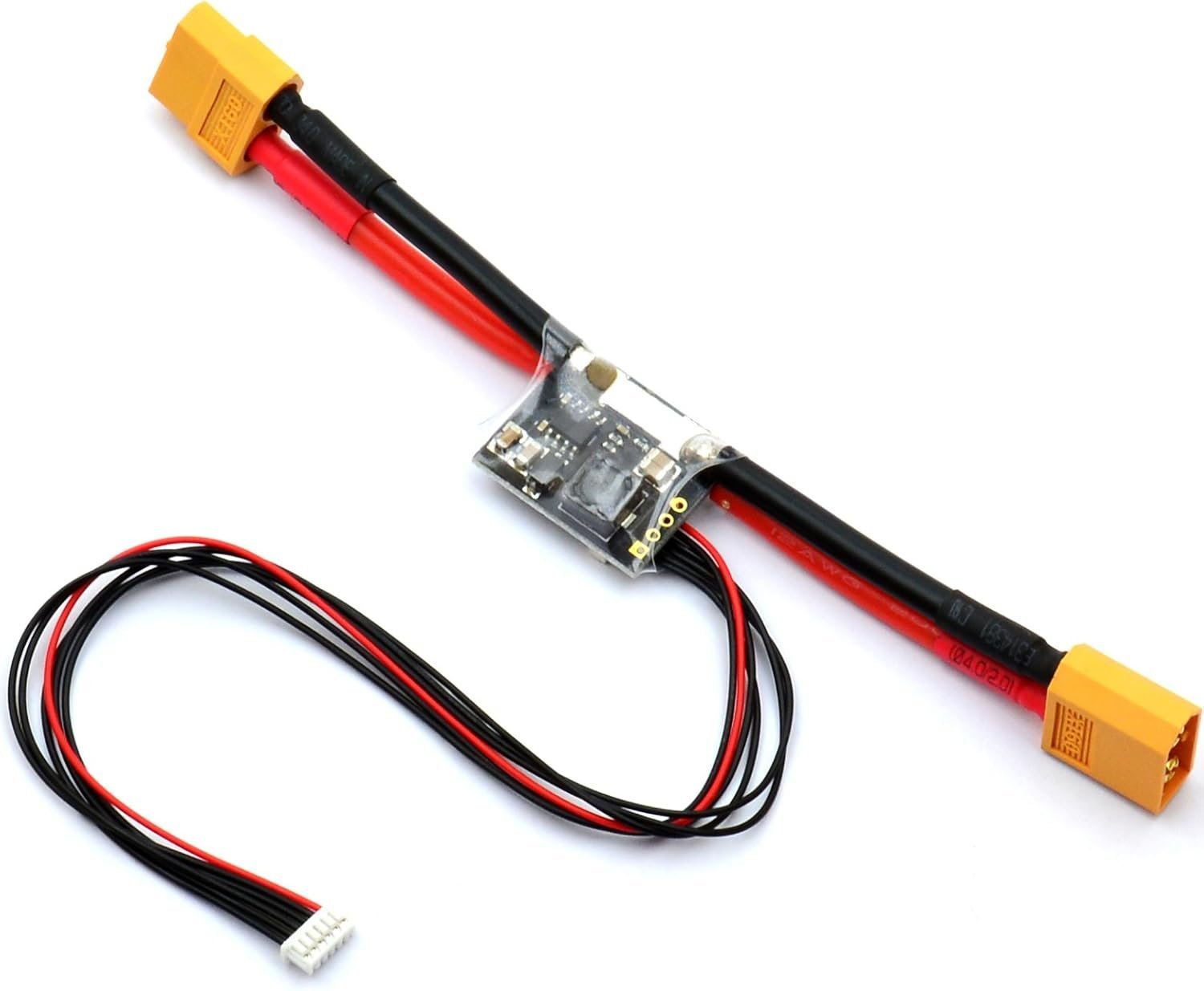

FPVDrone Power Module V1.0 XT60 Plug Current Sensor for APM2.8 APM2.6 APM

Color:YellowThe APM 2.5 Power Module is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 6S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection. Note: The Power Module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It isnotdesigned to power servos. Use your aircraft’s own ESC/BEC for that. Notice: we have many buyer burned this cable when connet it to 6S battery because he solder the cable to our this module cable.please don’t connect or solder any other cable on this current cable,otherwise it will be burned Power Module is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6P cable. The on-board switching regulator outputs 5.3V and a maximum of 3A from up to a 7S LiPo battery . Special for APM2.5.2 APM2.6 Pixhawk flight controller. Specifications: Max input voltage: 22.2V Max current sensing: 90A Voltage and current measurement configured for 5V ADC Switching regulator outputs 5.3V and 3A max 6-pos DF13 cable plugs directly to APM 2.5’s ‘PM’ connector Support 6S battery Package including : 1 * APM Power Module XT60 Plug If any questions, please do not hesitate to contact us and we will try our best to help you !
